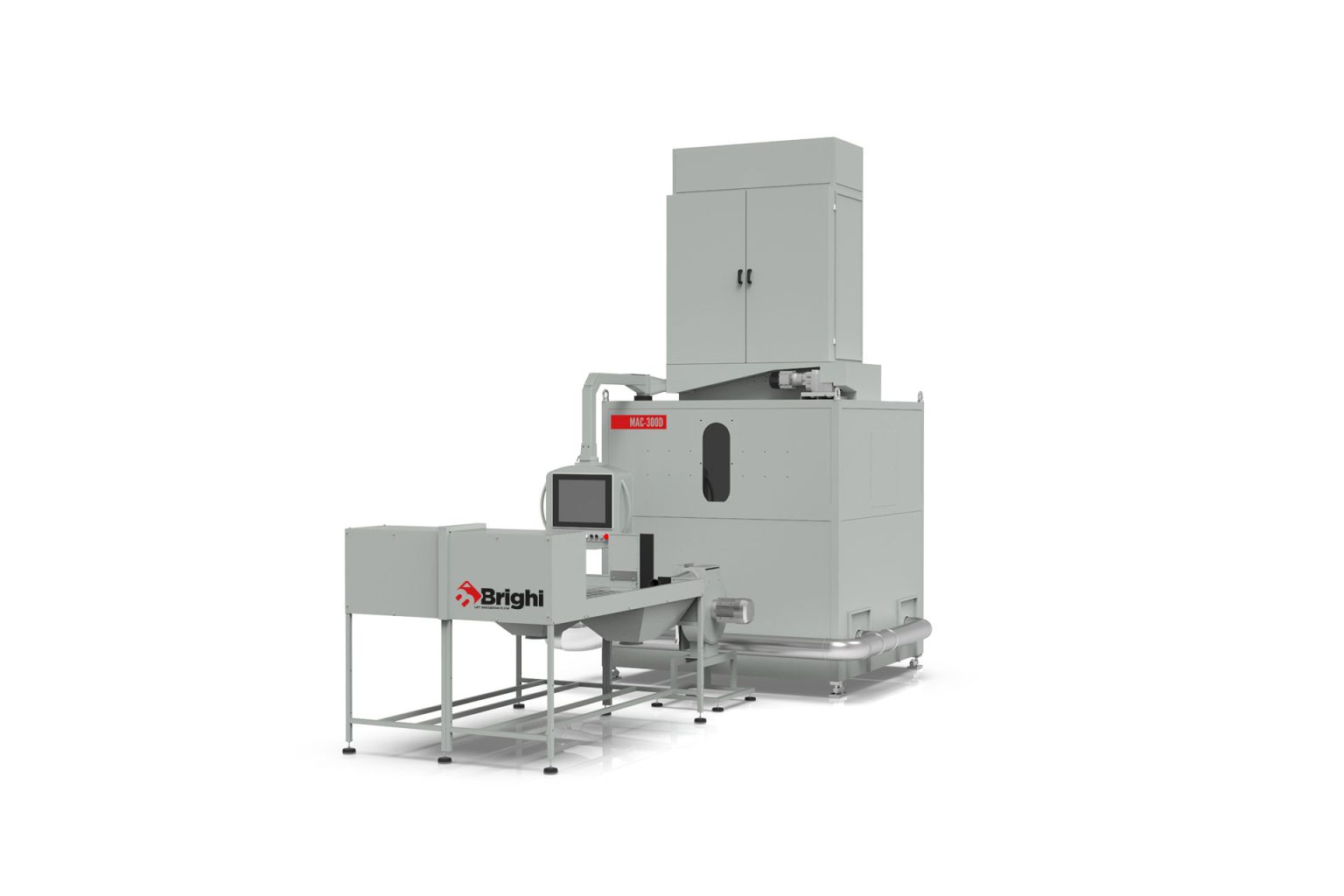

MAC-300D

PRE-WEIGHING AND FILLING SYSTEM FOR  UPHOLSTERY (3 WEIGHING UNITS AND 1 FILLING STATION)

This machine is specifically designed for the pre-weighing and blowing of upholstered items such as sofas and other big volume items. This blowing system has 3 weighing units and 1 filling station which table is much bigger than the ones used in other MAC machines to allow an easy blow filling phase even with more voluminous products.

The filling material is stored in the MAC silo and kept in motion to avoid clumping. The baskets accurately weight the material thank to the load cells positioned underneath them. They also automatically adjust excess weight thanks to the weight correction and recovery system.

As with all other MAC machines, it is possible to set different weight filling in different pockets for multichambered items and different pockets of upholstery components (seats, backs, etc) with individual different weights in sequence.

To discover what other configurations are possible, check our other MAC machines: MAC-200MAC-300MAC-400MAC-600.

WHAT YOU CAN FILL

Cushions, pillows, multi-chamber cushions, sacks, body pillows

FILLING MATERIALS YOU CAN USE

Polyester fiber and microfiber (virgin and recycled), feather & down, shredded foam, wool and other natural materials, mixed with all the previous materials.

MAIN FEATURES

  • The only system on the market that lets you pre-weigh – with the same system – a wide variety of natural and synthetic loose materials with precision and accuracy
  • Simplified management: touchscreen control panel for the automatic management of all parameters and mechanical adjustments, with adding and managing recipes with the product/material characteristics.
  • Flexibility: a wide range of materials and covers processed without the need for mechanical adjustments.
  • All filling materials: no restrictions on the type of cushion filling.
  • Deionizing bars in the input tower to eliminate process and weighing problems related to electrostatic charges.
  • Accurate pre-weighing and automatic weight correction and material recycling if filling overweight.
  • Different weights in multi-chamber cushions: the system is able to fill the different chambers of the upholstered components with different individual weights and in a different sequence. The fork tube designed for filling several chambers at a time significantly increases the operator’s performance.
  • Built-in dust collection system with filter fabric socks and bag holder with disposable collection bags.
  • Pillow stop clamps on the filler to allow a virtually hands-free process and management of two fillers by the same operator.
  • Suction table with direct recycling system of the material dispersed in the system for genuine material recovery otherwise lost and a cleaner working environment.


    I have read the privacy policy and consent to the processing of data

    Lines

    Process

    POSSIBLE LINE COMPOSITION

    • OF-550

      OF-550

      Fiber opener
    • BF-300

      BF-300

      Ball fiber machine
    • SF-150

      SF-150

      Shredding machine
    • SF-300

      SF-300

      Opener for fabric, non-woven fabric, quilted fabric, and thermobonded waste
    • MX-500

      MX-500

      Storage and mixing machine for loose raw materials
    • previous machines

      MAC-300D

      later machines
    • G164C

      G164C

      Special sewing machine
    • SH-100

      SH-100

      Pillow shaking machine for product homogeneity control
    • EB-500 EASY BAG

      EB-500 EASY BAG

      Automatic machine for packaging in bags and cases
    • EB-400 EASY BAG

      EB-400 EASY BAG

      Semi-automatic machine for packaging in bags and cases
    • HF-100

      HF-100

      Semi automatic stuffing / packaging machine for liners and bags
