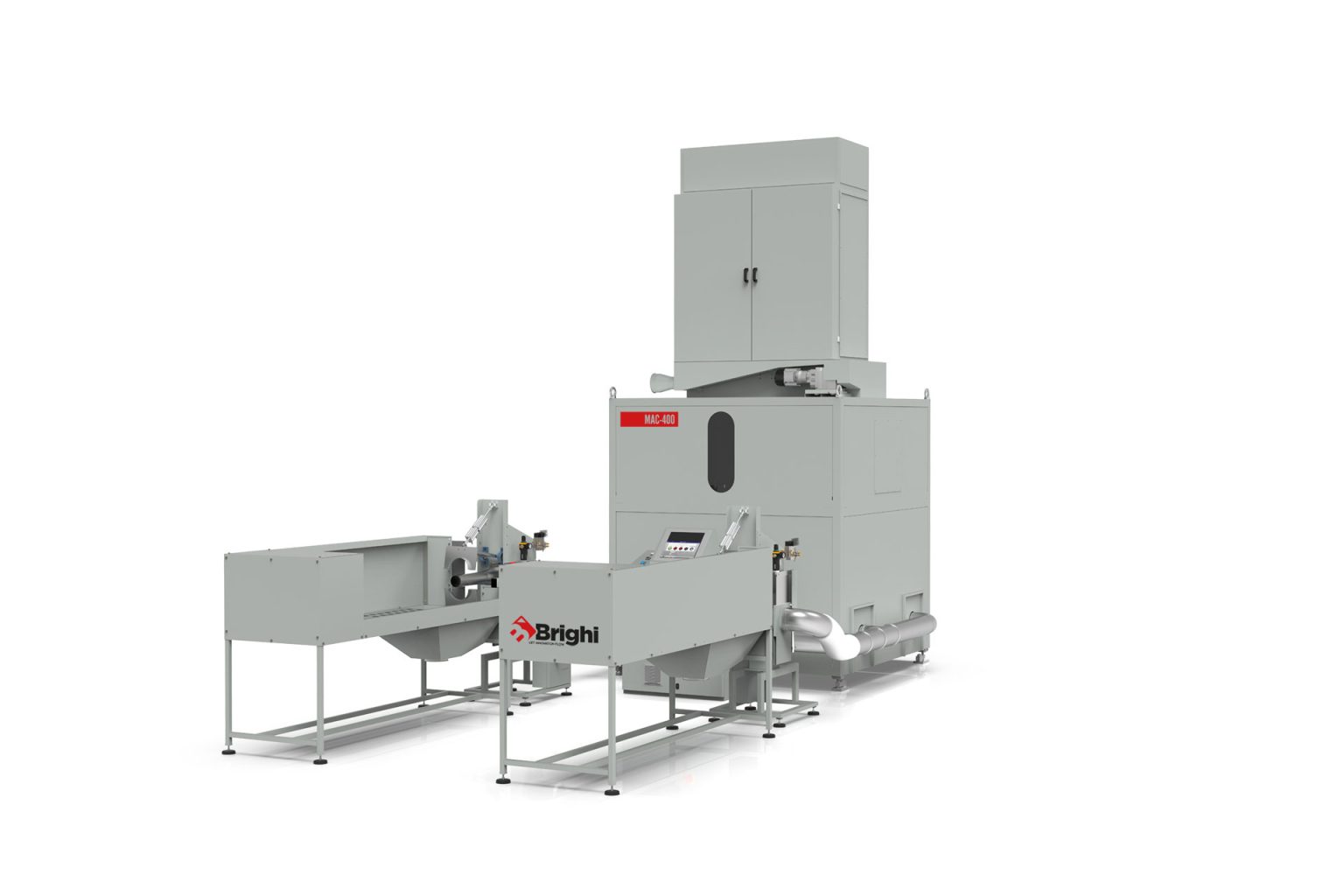

MAC-400

PRE-WEIGHING AND FILLING SYSTEM (4 WEIGHING UNITS AND 2 FILLING STATIONS)

MAC-400 is our pre-weighing and filling machine with 4 weighing units and 2 filling stations. There is no restriction on the filling material that can be used. The filling material is blown through the inlet tower, equipped at the base with a roller dosing system to ensure material falls evenly into the silo buffer below; the silo in turn is equipped with a rotor at the base to keep the material in motion and avoid any clumping.

A series of horizontal shutters allows the controlled fall of the product into the underlying baskets where it is weighed according to the selected recipe. Both the baskets and entire system are mounted on load cells so both the weight of the material inside the baskets and that in the buffer silo can be monitored at any time. Each basket is connected to the filler and to the weight correction and recovery system which intervenes if there is excess weight by removing some material and recycling it in the buffer silo. A large touchscreen with intuitive software and user interface allows the management of all system components and recipes.

The two filling stations can be managed by one single operator thanks to a clamping devise to allow a virtually hands-free operation.

This configuration is suitable for high production and accuracy.

To discover what other configurations are possible, check our other MAC machines: MAC-200MAC-300MAC-300DMAC-600.



WHAT YOU CAN FILL

Cushions, pillows, multi-chamber cushions, sacks, body pillows.

FILLING MATERIALS YOU CAN USE

Polyester fiber and microfiber (virgin and recycled), feather & down, shredded foam, wool and other natural materials, mixed with all the previous materials.

MAIN FEATURES

  • The only system on the market that lets you pre-weigh – with the same system – a wide variety of natural and synthetic loose materials with precision and accuracy.
  • Simplified management: touchscreen control panel for the automatic management of all parameters and mechanical adjustments, with adding and managing recipes with the product/material characteristics.
  • Flexibility: a wide range of materials and covers processed without the need for mechanical adjustments.
  • All filling materials: no restrictions on the type of cushion filling.
  • Deionizing bars in the input tower to eliminate process and weighing problems related to electrostatic charges.
  • Accurate pre-weighing and automatic weight correction and material recycling if filling overweight.
  • Different weights in multi-chamber cushions: the system is able to fill the different chambers of the upholstered components with different individual weights and in a different sequence. The fork tube designed for filling several chambers at a time significantly increases the operator’s performance.
  • Built-in dust collection system with filter fabric socks and bag holder with disposable collection bags.
  • Pillow stop clamps on the filler to allow a virtually hands-free process and management of two fillers by the same operator.
  • Suction table with direct recycling system of the material dispersed in the system for genuine material recovery otherwise lost and a cleaner working environment.


    I have read the privacy policy and consent to the processing of data

    Lines

    Process

    POSSIBLE LINE COMPOSITION

    • OF-550

      OF-550

      Fiber opener
    • BF-300

      BF-300

      Ball fiber machine
    • SF-150

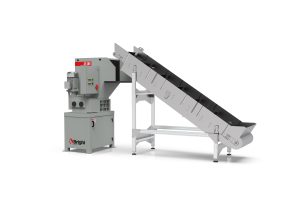

      SF-150

      Shredding machine
    • SF-300

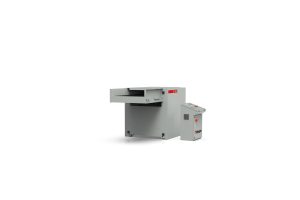

      SF-300

      Opener for fabric, non-woven fabric, quilted fabric, and thermobonded waste
    • MX-500

      MX-500

      Storage and mixing machine for loose raw materials
    • previous machines

      MAC-400

      later machines
    • G164C

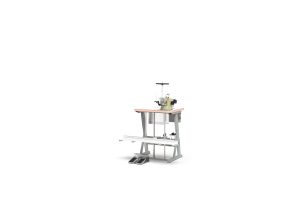

      G164C

      Special sewing machine
    • EB-500 EASY BAG

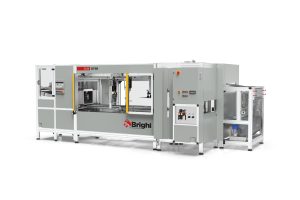

      EB-500 EASY BAG
