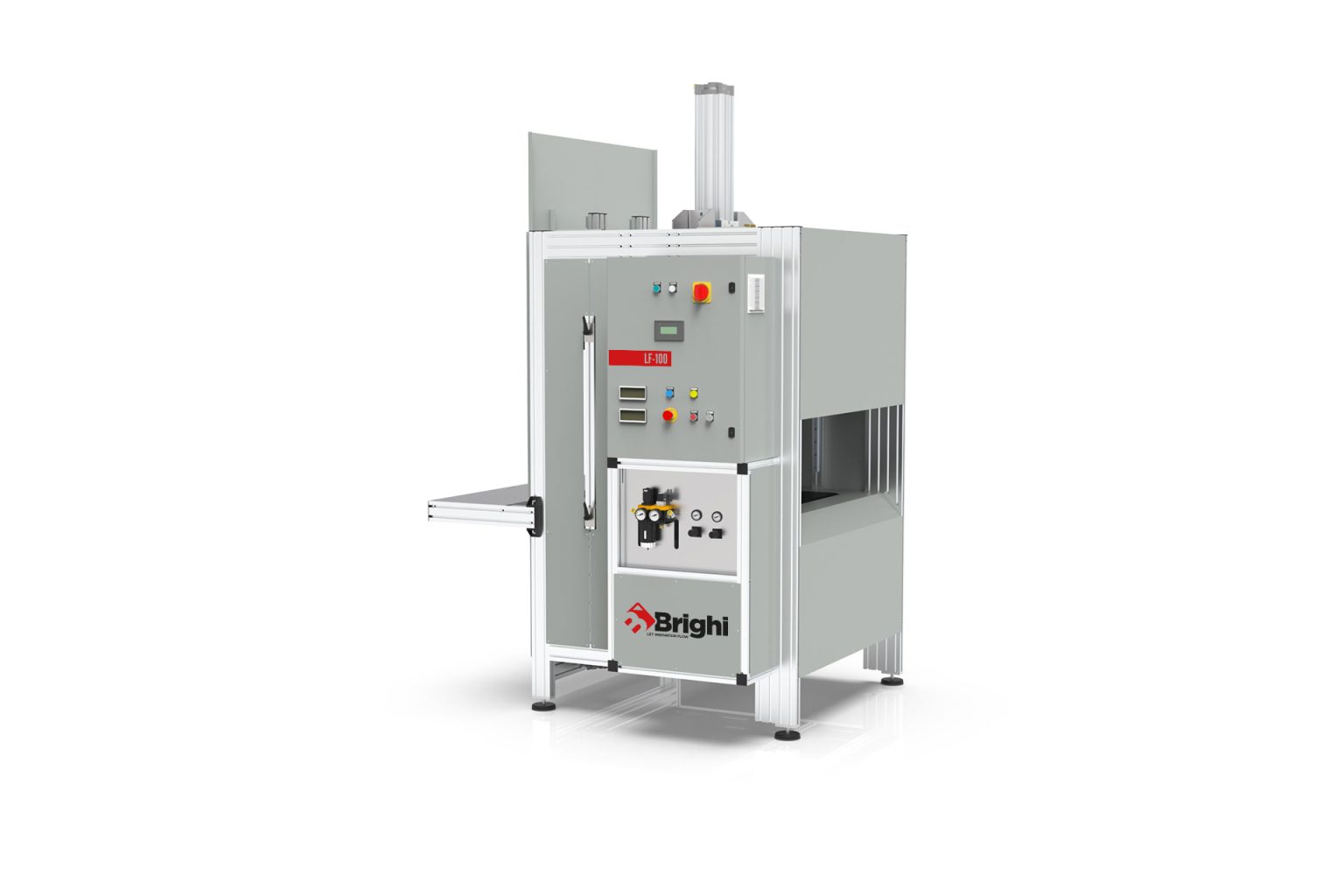

LF-100

SEMI-AUTOMATIC COMPRESSING AND SEALING MACHINE

The machine mod. LF-100 is an independent module to compress and heat-seal bags of pillows and quilts. The bagged object is positioned by the operator inside the machine which is activated by the pedal control. The top plate lowers to gradually compress the pack and then the double-wire sealing bar seals the bag and eliminates the excess plastic. The compression rate is adjustable depending on the filling material. The touchscreen allows you to customise and save the recipes for the different articles and all related parameters, including the compression level and the option to exclude the sealing.





WHAT CAN BE COMPRESSED AND / OR SEALED

Pillows, cushions, even stacked, folded quilts, clothing, etc.

BAGS THAT CAN BE USED

Individual bags, flat or with handles.

MAIN FEATURES

  • Temperature control of the sealing bar: electronic management of the double-wire sealing bar for maximum flexibility with a large variety of materials.
  • Upgrade to XL version to handle an extended range of products (up to 140cm / 55in in length). It includes mechanical modifications to the components and structure of the machine and a software upgrade.
  • Multiple pillows in one bag: multiple bagging in a single bag for space optimisation and compression up to 0.
  • Any filling materials: no restrictions on the type of filling of the cushions.
  • Simplified management: touchscreen control panel for the automatic management of all parameters and mechanical adjustments, with insertion and management of recipes with the characteristics of the product/material.
  • Flexibility: wide range of bags processed without the need for mechanical adjustments.


    I have read the privacy policy and consent to the processing of data

    Lines

    Process

    POSSIBLE LINE COMPOSITION

    • HF-100

      HF-100

      Semi automatic stuffing / packaging machine for liners and bags
    • MP-400

      MP-400

      Semi-automatic machine to stack more than two cushions / quilts
    • previous machines

      LF-100

      later machines
    • RT-100

      RT-100

      Round table with wheels
