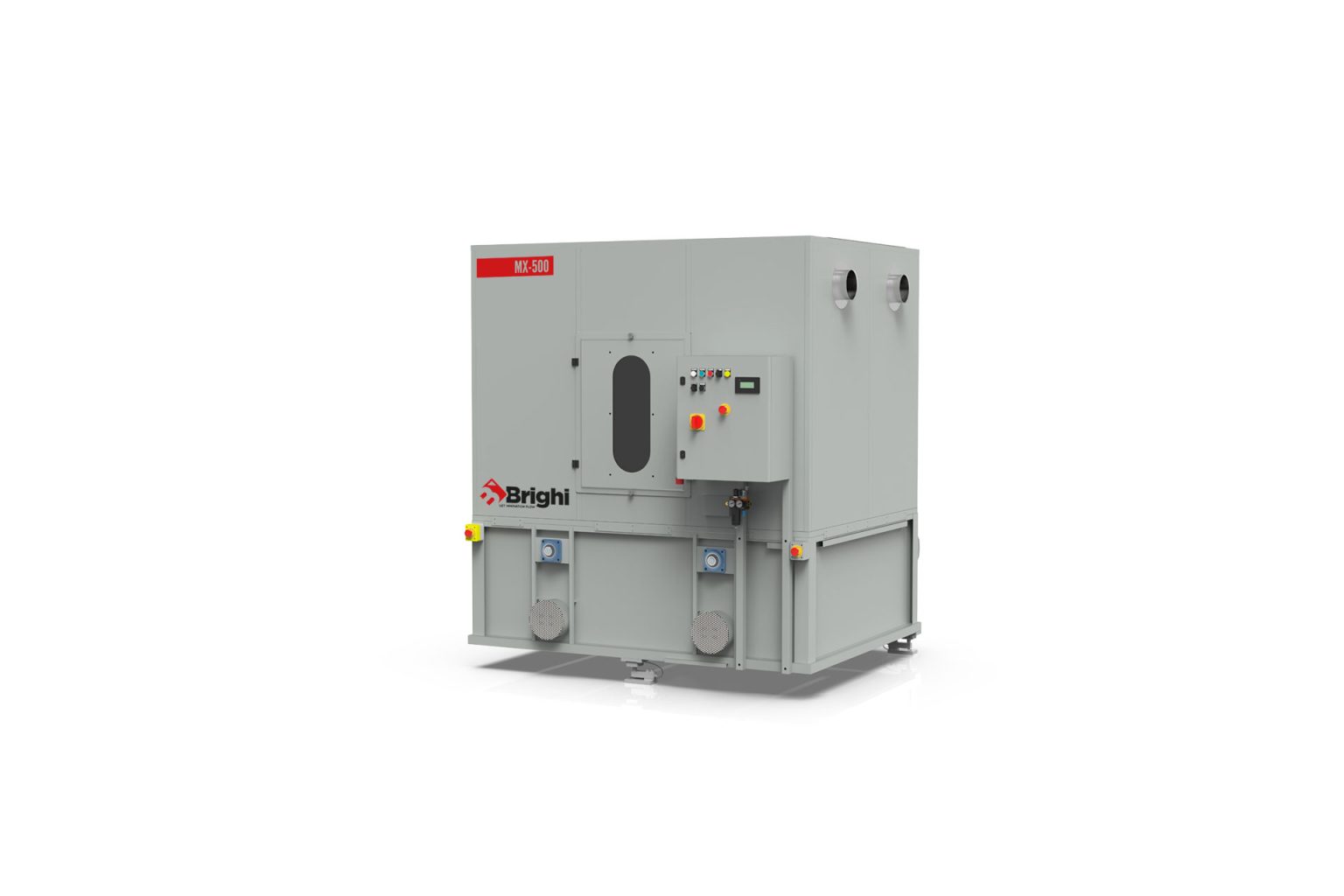

MX-500

STORAGE AND MIXING MACHINE FOR LOOSE RAW MATERIALS

MX-500 is a mixer to prepare blends of different padding materials before blow filling. A system of blades mixes the different components quickly and efficiently, and the constant movement prevents any clumping.

The upper part of the machine is equipped with a filtering micro-mesh to allow constant discharge of the air pressure inside, retaining dust and product particles. Multiple loading points makes it possible to optimise the configuration of the connection pipes in the customer’s premises. Two outlets with flange and pneumatic shutters allow the suction device to extract the material to then be sent the downstream machines.

WHAT CAN BE PROCESSED

Polyester fiber and microfiber (virgin and recycled), feathers, wool, natural fibers, shredded foam, ball fiber, recycled fiber and fabric scraps.

MAIN FEATURES

  • Exceptional mix quality and efficiency: the specially designed mixing system allows homogeneous mixing of any type of component in a matter of minutes.
  • Mixes different materials in variable proportions: complete control and high accuracy in forming the mix by electronically dosing the components in percentage or in weight shares.
  • Simplified management: control panel for managing all parameters and mechanical adjustments.
  • Flexibility: handling and mixing of different materials with the machine without the need for manual mechanical adjustments. Excellent performance when used as a storage silo for static-sensitive materials thanks to the construction in antistatic material (wood/laminate panelling).
  • Easy cleaning: when changing material, the rear door allows easy access to fully clean the inside of the machine.


    I have read the privacy policy and consent to the processing of data

    Lines

    Process

    POSSIBLE LINE COMPOSITION

    • OF-550

      OF-550

      Fiber opener
    • BF-300

      BF-300

      Ball fiber machine
    • SF-150

      SF-150

      Shredding machine
    • SF-300

      SF-300

      Opener for fabric, non-woven fabric, quilted fabric, and thermobonded waste
    • previous machines

      MX-500

      later machines
    • FM-100D

      FM-100D

      Manual filler
    • FW-110

      FW-110

      Semi-automatic electronic filler
    • MAC-200

      MAC-200

      Pre-weighing and filling system
    • MAC-300D

      MAC-300D

      Pre-weighing and filling system
    • MAC-300

      MAC-300

      Pre-weighing and filling system
    • MAC-400

      MAC-400

      Pre-weighing and filling system
    • MAC-600

      MAC-600

      Pre-weighing and filling system
