SEMI-AUTOMATIC STUFFING, SEWING AND LABELLING SYSTEM

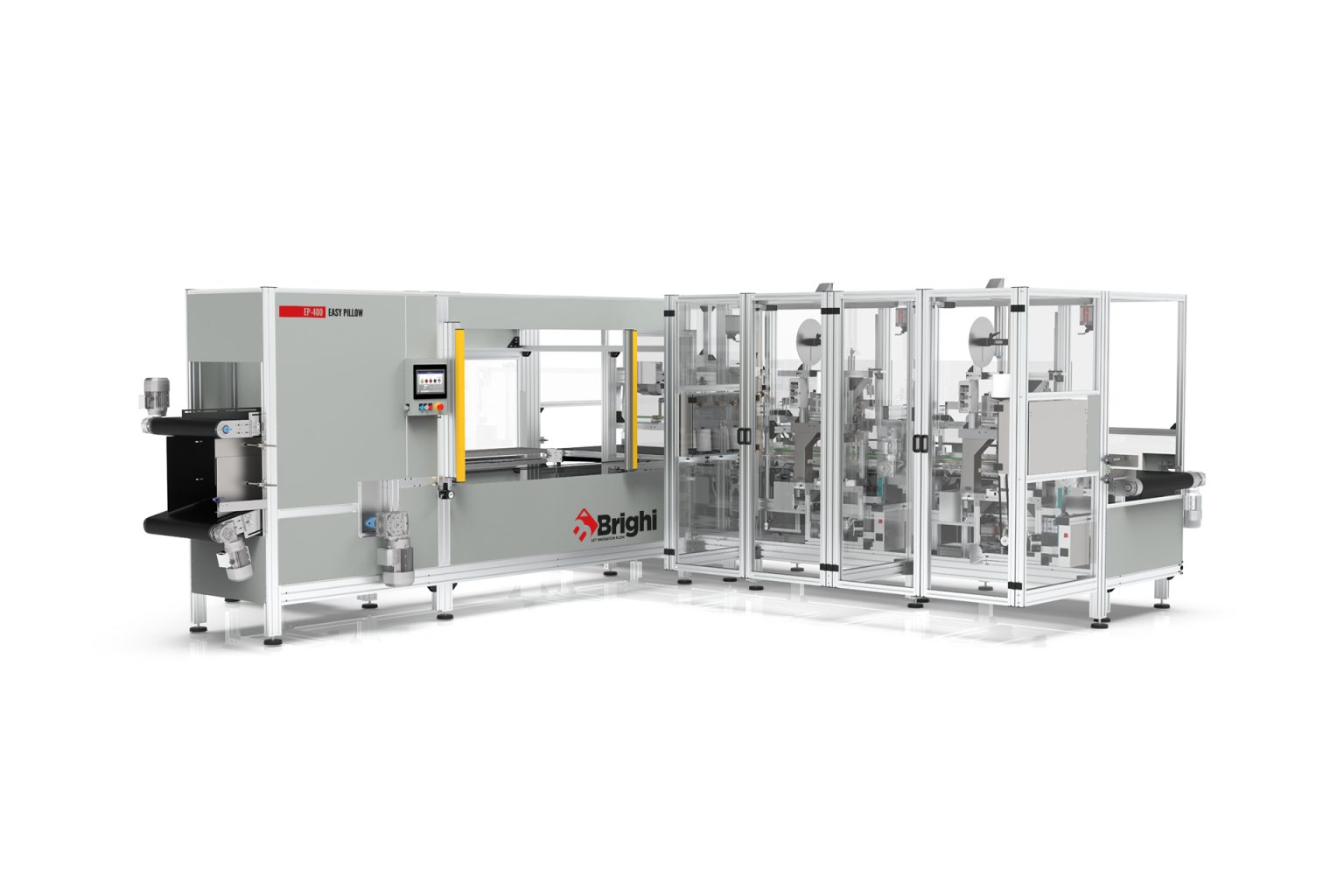

EP-400 Easy Pillow is a semi-automatic machine for stuffing, sewing and labelling rolled carded fiber cushions and pillows. The feeding of the rolled batt can be done manually or come from the rolling machine mod. RM-100, or in the case of a batt with a polyurethane core or other material, the product is fed manually by positioning it on the input belt.

An operator places the cover on the stuffing belts and the rolled batt is taken by the input belt and inserted inside the cover. At this point the whole carriage with the forks advances towards the sewing area where the cushion is released between the transfer belts. The cushion reaches the sewing station where it is sewn and labelled and then unloaded for the next steps in the process. The machine parameters can be easily set on the touchscreen equipped with intuitive software.

The standard machine is supplied with 1 overlock sewing station; for non-stop production, a second sewing station can be included which acts as a back-up in the event of machine stoppage to load materials (label or thread rolls): the back-up sewing station activates on its own and automatically replaces the first station.

WHAT YOU CAN FILL

Pillows, cushions.

FILLING MATERIALS YOU CAN USE

Rolled carded fiber batt, polyurethane core.

MAIN FEATURES

• Reduced labour costs: a single operator for cover loading and checking operation when necessary.
• Simplified management: touchscreen control panel for the automatic management of all parameters and mechanical adjustments, with adding and managing recipes with product characteristics.
• Flexibility: a wide range of materials and covers that can be filled by the machine without the need for mechanical adjustments.
• Upgrade to XL version to handle an extended range of products (up to 140cm/55in in length).
