HL-1500

HIGH-CAPACITY FIBER BALE LOADER

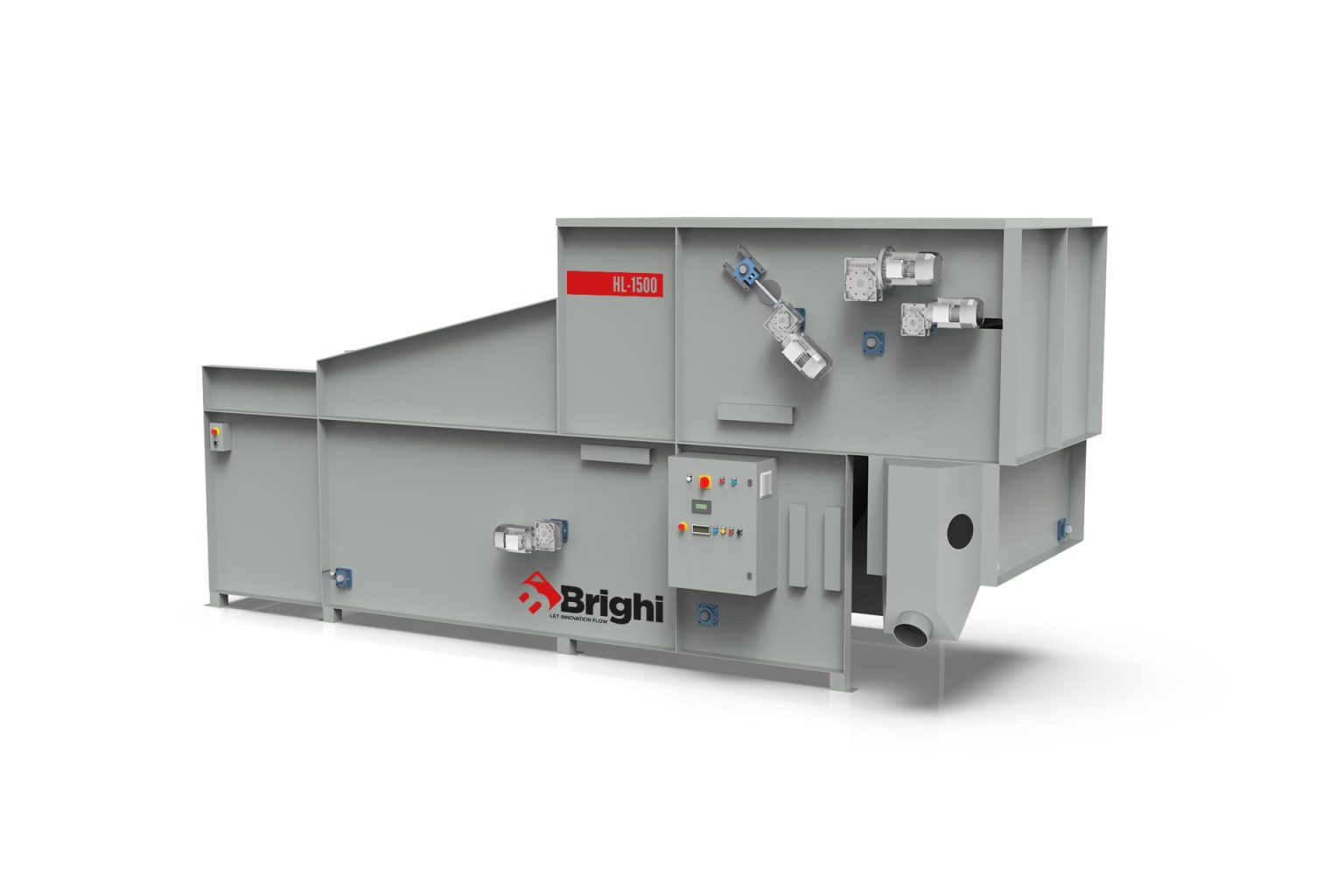

High-capacity fiber bale loader HL-1500 is a high-capacity loader for compressed fiber bales. The loading belt can accommodate up to 2 standard-size bales and allows continuous feeding of downstream machines. The horizontal belt ensures continuous and uniform feeding of the material towards the inclined spiked belt which scores the bale and carries tufts of fiber into the hopper, to feed the next machine.

Optional additional belts can be installed to load up to 3 bales and different types of hoppers, depending on requirements.

The fiber bale loader can be connected to a maximum of three fiber openers mod. OF-550.

The control panel lets you control the speed and feed parameters of the belts and therefore regulates machine production capacity.

WHAT CAN BE LOADED

Compressed bales of polyester fiber and microfiber, virgin or recycled, hollow, conjugated, dry, and siliconized fiber.

MAIN FEATURES

  • Electronic management: the machine’s control panel lets you manage all the mechanical parameters and settings automatically.
  • Flexibility: the widest range of fibers handled by the machine without the need for mechanical adjustments.
  • No operator needed after bale loading – Fast bale feed function towards the inclined belt to facilitate non-stop operation.
  • Easy cleaning: when changing material the horizontal belt can be manually operated in Reverse for easier cleaning and quicker removal of any remaining material.


    I have read the privacy policy and consent to the processing of data

    Lines

    Process

    POSSIBLE LINE COMPOSITION

    • previous machines

      HL-1500

      later machines
    • OF-550

      OF-550

      Fiber opening machine
    • BF-300

      BF-300

      Ball fiber machine
    • MAC-300

      MAC-300

      Pillow pre-weighing filling machine (3 weighing units and 1 filling station)
    • MAC-400

      MAC-400

      Pre-weighing and filling system (4 weighing units and 2 filling stations)
    • MAC-600

      MAC-600

      Pillow pre-weighing and filling machine (6 weighing units and 2 filling stations)
